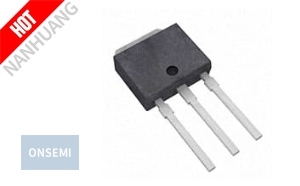

2SK3823 Images
- Manufacturer: onsemi (ON)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-220
- Description: MOSFET N-CH 60V 40A TO220
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
2SK3823 Specifications:
- MfrPart.: 2SK3823
- Mfr: onsemi
- Description: MOSFET N-CH 60V 40A TO220
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Bulk
- Series: -
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 60 V
- Current-ContinuousDrain(Id)@25°C: 40A (Ta)
- DriveVoltage(MaxRdsOnMinRdsOn): 4V, 10V
- RdsOn(Max)@IdVgs: 27.5mOhm @ 20A, 10V
- Vgs(th)(Max)@Id: 2.6V @ 1mA
- GateCharge(Qg)(Max)@Vgs: 40 nC @ 10 V
- Vgs(Max): ±20V
- InputCapacitance(Ciss)(Max)@Vds: 1780 pF @ 20 V
- FETFeature: -
- PowerDissipation(Max): 1.75W (Ta), 45W (Tc)
- OperatingTemperature: 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-220
- 2SK3823 onsemi (ON), MOSFET N-CH 60V 40A TO220, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
2SK3823, onsemi authentic parts in stock from onsemi (ON) authorized distributors, order today, can ship immediately.
