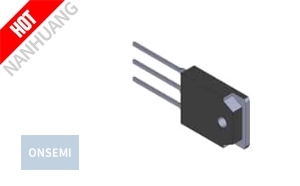

HGTG11N120CND Images
- Manufacturer: onsemi (ON)
- Category: Discrete Semiconductor Products~Transistors - IGBTs - Single Package/Case: TO-247-3
- Description: IGBT NPT 1200V 43A TO247-3
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
HGTG11N120CND Specifications:
- MfrPart.: HGTG11N120CND
- Mfr: onsemi
- Description: IGBT NPT 1200V 43A TO247-3
- Product Category: Discrete Semiconductor Products~Transistors - IGBTs - Single
- Package: Tube
- Series: -
- PartStatus: Not For New Designs
- IGBTType: NPT
- Voltage-CollectorEmitterBreakdown(Max): 1200 V
- Current-Collector(Ic)(Max): 43 A
- Current-CollectorPulsed(Icm): 80 A
- Vce(on)(Max)@VgeIc: 2.4V @ 15V, 11A
- Power-Max: 298 W
- SwitchingEnergy: 950µJ (on), 1.3mJ (off)
- InputType: Standard
- GateCharge: 100 nC
- Td(on/off)@25°C: 23ns/180ns
- TestCondition: 960V, 11A, 10Ohm, 15V
- ReverseRecoveryTime(trr): 70 ns
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- Package/Case: TO-247-3
- HGTG11N120CND onsemi (ON), IGBT NPT 1200V 43A TO247-3, Discrete Semiconductor Products~Transistors - IGBTs - Single
HGTG11N120CND, onsemi authentic parts in stock from onsemi (ON) authorized distributors, order today, can ship immediately.
