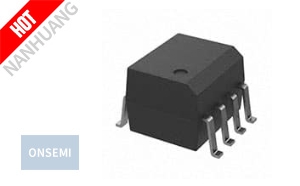

HCPL2631SDV Images
- Manufacturer: onsemi (ON)
- Category: Isolators~Optoisolators - Logic Output Package/Case: 8-SMD, Gull Wing
- Description: OPTOISO 2.5KV 2CH OPEN COLL 8DIP
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
HCPL2631SDV Specifications:
- MfrPart.: HCPL2631SDV
- Mfr: onsemi
- Description: OPTOISO 2.5KV 2CH OPEN COLL 8DIP
- Product Category: Isolators~Optoisolators - Logic Output
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: -
- PartStatus: Active
- NumberofChannels: 2
- Inputs-Side1/Side2: 2/0
- Voltage-Isolation: 2500Vrms
- CommonModeTransientImmunity(Min): 5kV/µs
- InputType: DC
- OutputType: Open Collector
- Current-Output/Channel: 50 mA
- DataRate: 10Mbps
- PropagationDelaytpLH/tpHL(Max): 75ns, 75ns
- Rise/FallTime(Typ): 50ns, 12ns
- Voltage-Forward(Vf)(Typ): 1.4V
- Current-DCForward(If)(Max): 30mA
- Voltage-Supply: 4.5V ~ 5.5V
- OperatingTemperature: -40°C ~ 85°C
- MountingType: Surface Mount
- Package/Case: 8-SMD, Gull Wing
- HCPL2631SDV onsemi (ON), OPTOISO 2.5KV 2CH OPEN COLL 8DIP, Isolators~Optoisolators - Logic Output
