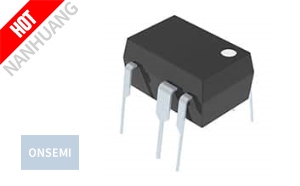

H11D2VM Images
- Manufacturer: onsemi (ON)
- Category: Isolators~Optoisolators - Transistor, Photovoltaic Output Package/Case: 6-DIP (0.300, 7.62mm)
- Description: TRANSISTOR OUTPUT OPTOCOUPLER
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
H11D2VM Specifications:
- MfrPart.: H11D2VM
- Mfr: Fairchild Semiconductor (Now part of ONsemi)
- Description: TRANSISTOR OUTPUT OPTOCOUPLER
- Product Category: Isolators~Optoisolators - Transistor, Photovoltaic Output
- Package: Bulk
- Series: -
- PartStatus: Obsolete
- NumberofChannels: 1
- Voltage-Isolation: 7500Vpk
- CurrentTransferRatio(Min): 20% @ 10mA
- CurrentTransferRatio(Max): -
- TurnOn/TurnOffTime(Typ): 5µs, 5µs
- Rise/FallTime(Typ): -
- InputType: DC
- OutputType: Transistor with Base
- Voltage-Output(Max): 300V
- Current-Output/Channel: 100mA
- Voltage-Forward(Vf)(Typ): 1.15V
- Current-DCForward(If)(Max): 80 mA
- VceSaturation(Max): 400mV
- OperatingTemperature: -40°C ~ 100°C
- MountingType: Through Hole
- Package/Case: 6-DIP (0.300, 7.62mm)
- H11D2VM onsemi (ON), TRANSISTOR OUTPUT OPTOCOUPLER, Isolators~Optoisolators - Transistor, Photovoltaic Output
H11D2VM, onsemi authentic parts in stock from onsemi (ON) authorized distributors, order today, can ship immediately.
