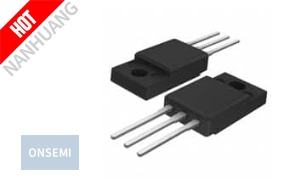

FDP12N60NZ Images
- Manufacturer: onsemi (ON)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: TO-220-3
- Description: MOSFET N-CH 600V 12A TO220-3
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
FDP12N60NZ Specifications:
- MfrPart.: FDP12N60NZ
- Mfr: onsemi
- Description: MOSFET N-CH 600V 12A TO220-3
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: UniFET-II™
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 600 V
- Current-ContinuousDrain(Id)@25°C: 12A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 10V
- RdsOn(Max)@IdVgs: 650mOhm @ 6A, 10V
- Vgs(th)(Max)@Id: 5V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 34 nC @ 10 V
- Vgs(Max): ±30V
- InputCapacitance(Ciss)(Max)@Vds: 1676 pF @ 25 V
- FETFeature: -
- PowerDissipation(Max): 240W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: TO-220-3
- FDP12N60NZ onsemi (ON), MOSFET N-CH 600V 12A TO220-3, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
