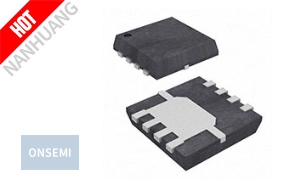

FDMS86520 Images
- Manufacturer: onsemi (ON)
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: 8-PQFN (5x6)
- Description: MOSFET N-CH 60V 14A/42A 8PQFN
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
FDMS86520 Specifications:
- MfrPart.: FDMS86520
- Mfr: onsemi
- Description: MOSFET N-CH 60V 14A/42A 8PQFN
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR),Cut Tape (CT)
- Series: PowerTrench®
- PartStatus: Active
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 60 V
- Current-ContinuousDrain(Id)@25°C: 14A (Ta), 42A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 8V, 10V
- RdsOn(Max)@IdVgs: 7.4mOhm @ 14A, 10V
- Vgs(th)(Max)@Id: 4.5V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 40 nC @ 10 V
- Vgs(Max): ±20V
- InputCapacitance(Ciss)(Max)@Vds: 2850 pF @ 30 V
- FETFeature: -
- PowerDissipation(Max): 2.5W (Ta), 69W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: 8-PQFN (5x6)
- FDMS86520 onsemi (ON), MOSFET N-CH 60V 14A/42A 8PQFN, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
