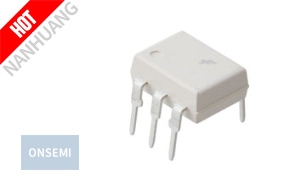

CNX36USD Images
- Manufacturer: onsemi (ON)
- Category: Isolators~Optoisolators - Transistor, Photovoltaic Output Package/Case: 6-SMD, Gull Wing
- Description: OPTOISO 5.3KV TRANS W/BASE 6SMD
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
CNX36USD Specifications:
- MfrPart.: CNX36USD
- Mfr: onsemi
- Description: OPTOISO 5.3KV TRANS W/BASE 6SMD
- Product Category: Isolators~Optoisolators - Transistor, Photovoltaic Output
- Package: Tape & Reel (TR)
- Series: -
- PartStatus: Obsolete
- NumberofChannels: 1
- Voltage-Isolation: 5300Vrms
- CurrentTransferRatio(Min): 80% @ 10mA
- CurrentTransferRatio(Max): 200% @ 10mA
- TurnOn/TurnOffTime(Typ): 20µs, 20µs
- Rise/FallTime(Typ): -
- InputType: DC
- OutputType: Transistor with Base
- Voltage-Output(Max): 30V
- Current-Output/Channel: 100mA
- Voltage-Forward(Vf)(Typ): 1.15V
- Current-DCForward(If)(Max): 100 mA
- VceSaturation(Max): 400mV
- OperatingTemperature: -40°C ~ 100°C
- MountingType: Surface Mount
- Package/Case: 6-SMD, Gull Wing
- CNX36USD onsemi (ON), OPTOISO 5.3KV TRANS W/BASE 6SMD, Isolators~Optoisolators - Transistor, Photovoltaic Output
CNX36USD, onsemi authentic parts in stock from onsemi (ON) authorized distributors, order today, can ship immediately.
