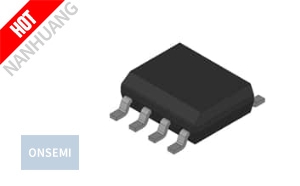

6N138SD Images
- Manufacturer: onsemi (ON)
- Category: Isolators~Optoisolators - Transistor, Photovoltaic Output Package/Case: 8-SMD, Gull Wing
- Description: OPTOISO 2.5KV DARL W/BASE 8SMD
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
6N138SD Specifications:
- MfrPart.: 6N138SD
- Mfr: onsemi
- Description: OPTOISO 2.5KV DARL W/BASE 8SMD
- Product Category: Isolators~Optoisolators - Transistor, Photovoltaic Output
- Package: Tape & Reel (TR)
- Series: -
- PartStatus: Obsolete
- NumberofChannels: 1
- Voltage-Isolation: 2500Vrms
- CurrentTransferRatio(Min): 300% @ 1.6mA
- CurrentTransferRatio(Max): -
- TurnOn/TurnOffTime(Typ): 1.5µs, 7µs
- Rise/FallTime(Typ): -
- InputType: DC
- OutputType: Darlington with Base
- Voltage-Output(Max): 7V
- Current-Output/Channel: 60mA
- Voltage-Forward(Vf)(Typ): 1.3V
- Current-DCForward(If)(Max): 20 mA
- VceSaturation(Max): -
- OperatingTemperature: -40°C ~ 85°C
- MountingType: Surface Mount
- Package/Case: 8-SMD, Gull Wing
- 6N138SD onsemi (ON), OPTOISO 2.5KV DARL W/BASE 8SMD, Isolators~Optoisolators - Transistor, Photovoltaic Output
6N138SD, onsemi authentic parts in stock from onsemi (ON) authorized distributors, order today, can ship immediately.
