2SD1685F onsemi TRANS NPN 20V 5A TO126ML
2SD1685F Images
2SD1685F Images
2SD1685F
  • Manufacturer: onsemi (ON)
  • Category: Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Single Package/Case: TO-225AA, TO-126-3
  • Description: TRANS NPN 20V 5A TO126ML
  • COMPETITIVE PRICE and DELIVERY TIME
  • Order with confidence, there are no lead times for in-stock products.
Quickly Quote for You to Meet Your Target Price, Support Small Order Quantity with Fast Quick Delivery.
Download Datasheet (PDF)
2SD1685F Datasheet
ELECTRONIC COMPONENTS, CHOOSE NHE ELECTRONICS
2SD1685F Specifications:
  • MfrPart.: 2SD1685F
  • Mfr: onsemi
  • Description: TRANS NPN 20V 5A TO126ML
  • Product Category: Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Single
  • Package: Bulk
  • Series: -
  • PartStatus: Obsolete
  • TransistorType: NPN
  • Current-Collector(Ic)(Max): 5 A
  • Voltage-CollectorEmitterBreakdown(Max): 20 V
  • VceSaturation(Max)@IbIc: 500mV @ 60mA, 3A
  • Current-CollectorCutoff(Max): 100nA (ICBO)
  • DCCurrentGain(hFE)(Min)@IcVce: 160 @ 500mA, 2V
  • Power-Max: 1.5 W
  • Frequency-Transition: 120MHz
  • OperatingTemperature: 150°C (TJ)
  • MountingType: Through Hole
  • Package/Case: TO-225AA, TO-126-3
  • 2SD1685F onsemi (ON), TRANS NPN 20V 5A TO126ML, Discrete Semiconductor Products~Transistors - Bipolar (BJT) - Single
FDD9410L-F085
FDD9410L-F085
MC74HC86AFG
MC74HC86AFG
NCP1377DR2G
NCP1377DR2G
H11AG2W
H11AG2W

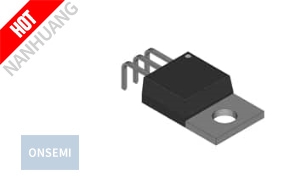

MTP5P25
